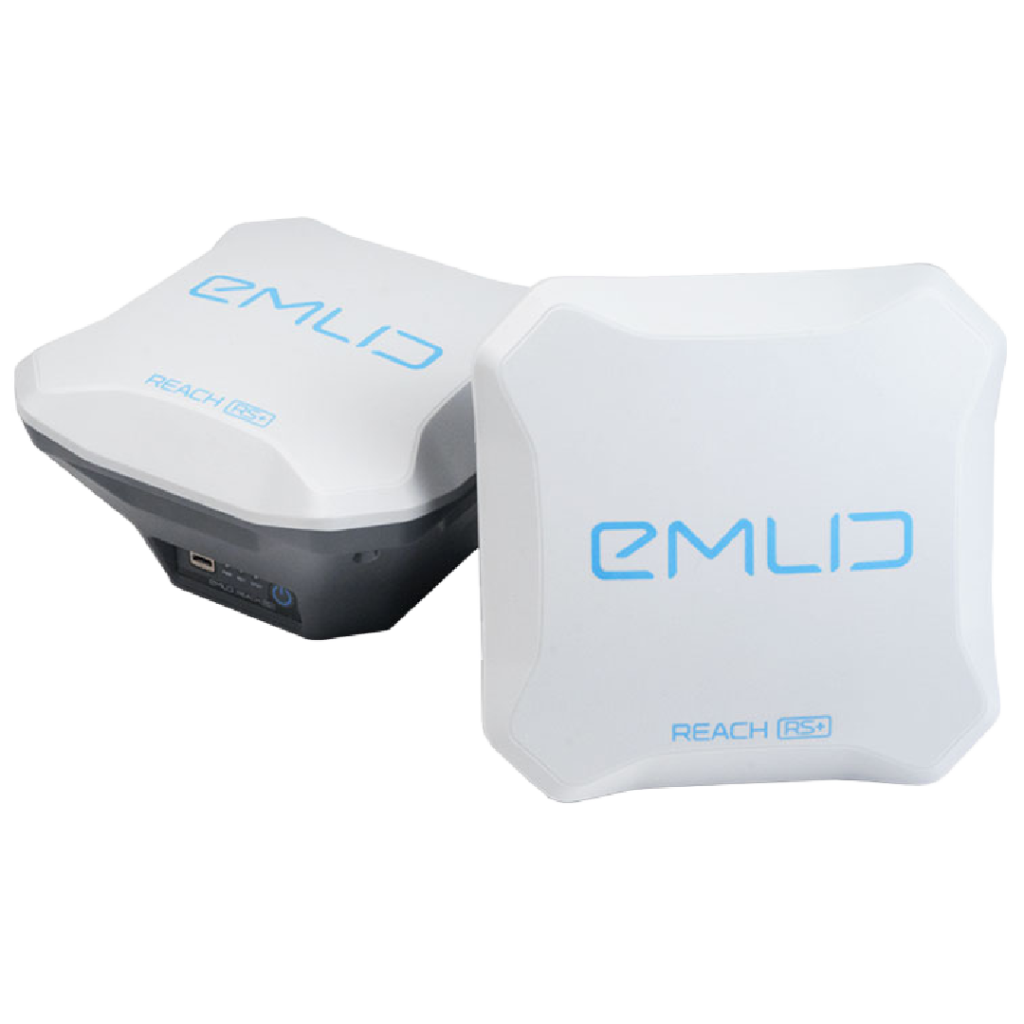

Single-band RTK GNSS receiver with centimeter precision

For surveying, mapping and navigation.
Mobile App included.

Single-band RTK GNSS receiver with centimeter precision

For surveying, mapping and navigation.
Mobile App included.

Surveying with ReachView 3

The easiest to use software for data collection that is available both for Android and iOS. With ReachView, you can collect and stakeout points and control all the features of Reach receivers, such as setting up a base station, logging RINEX data, and configuring NMEA output.

Point collection: save points, and export data to CSV

Record each position as a point with centimeter precise coordinates. Export projects and open them in GIS or CAD software like AutoCAD, ArcGIS, QGIS, and others.

Coordinate systems based on

WGS84, NAD83, GDA2020, and others

Stakeout: find point's position on the ground

Stakeout is used to find exact physical locations of points. They can be collected in ReachView or imported from other CAD or GIS software.

Logging in RINEX: record raw data, position, and base correction logs

Record raw data, position and base correction logs. Point collection and recording of RAW data are independent processes and can be used simultaneously. ReachView has a simple and intuitive interface for logging configuration and control.

We provide our version of RTKLib for PPK. It’s free and can be downloaded from our docs.

8 GB

Storage

80+ Days

of logging at 1 Hz

Connectivity

Real-time position streaming in NMEA

Reach provides data in standard NMEA that is used by most GIS apps. Simply connect your device to Reach over Bluetooth or with a cable, and turn on “Position output” in ReachView.

Compatible Apps

MachineryGuide, AgriBus-Navi, Efarmer, Agripilot, and others

Reach can turn on and off automatically

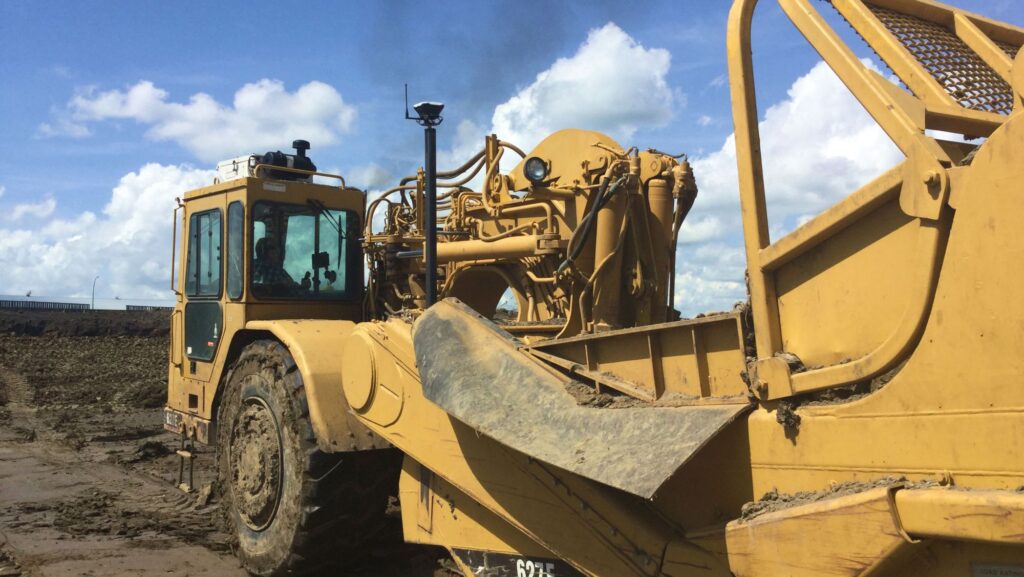

Reach is able turn on and off in sync with an external battery connected over RS-232. This helps when the power button is hard to reach, for example, if the receiver is placed on the roof of a tractor.

Position streaming

Interfaces

RS-232, TCP, Bluetooth

NTRIP or another Reach as a base station

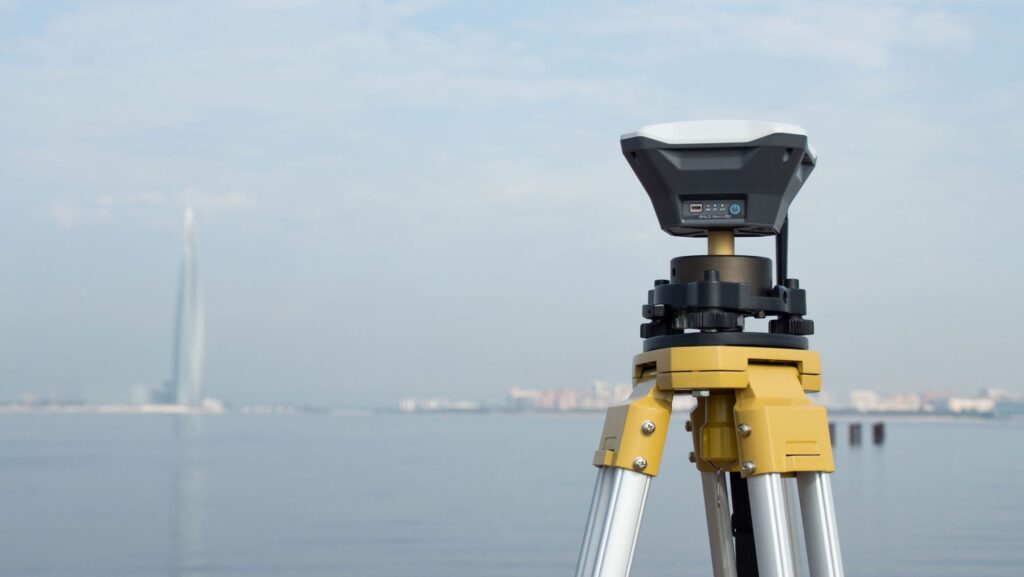

Reach RS+ needs a base station as a source of corrections. That’s a requirement for centimeter accuracy in RTK and PPK. The base might be either another Reach RS+ receiver or an NTRIP service. VRS is also supported.



Reach RS+ works seamlessly with other Reach receivers over any link.

Input and output corrections

Interfaces

TCP, LoRa, Bluetooth, RS-232, NTRIP

Formats

RTCM3

Max distance from a base

Up to 10 km in RTK
20 km in PPK

Reach RS+ is designed for harsh conditions. Mountains, frost, heat and water, Reach can handle it all

IP67

Can be held 1 meter deep under water for half an hour.

-20ºС…+65ºС

Working temperature. Isn’t afraid of either heat or cold.

30 Hours

Industrial LiFePO4 battery that doesn’t die on cold. Charges over USB from a powerbank.

Contact us to purchase the Emlid Reach RS+

Standalone Reach RS+

1x Emlid Reach RS+

RM4,000

Survey Kit Reach RS+

2x Emlid Reach RS+

RM7,800

Get In Touch

Have questions? Our drone experts are here to help
